Technical/Functional Specification
Series

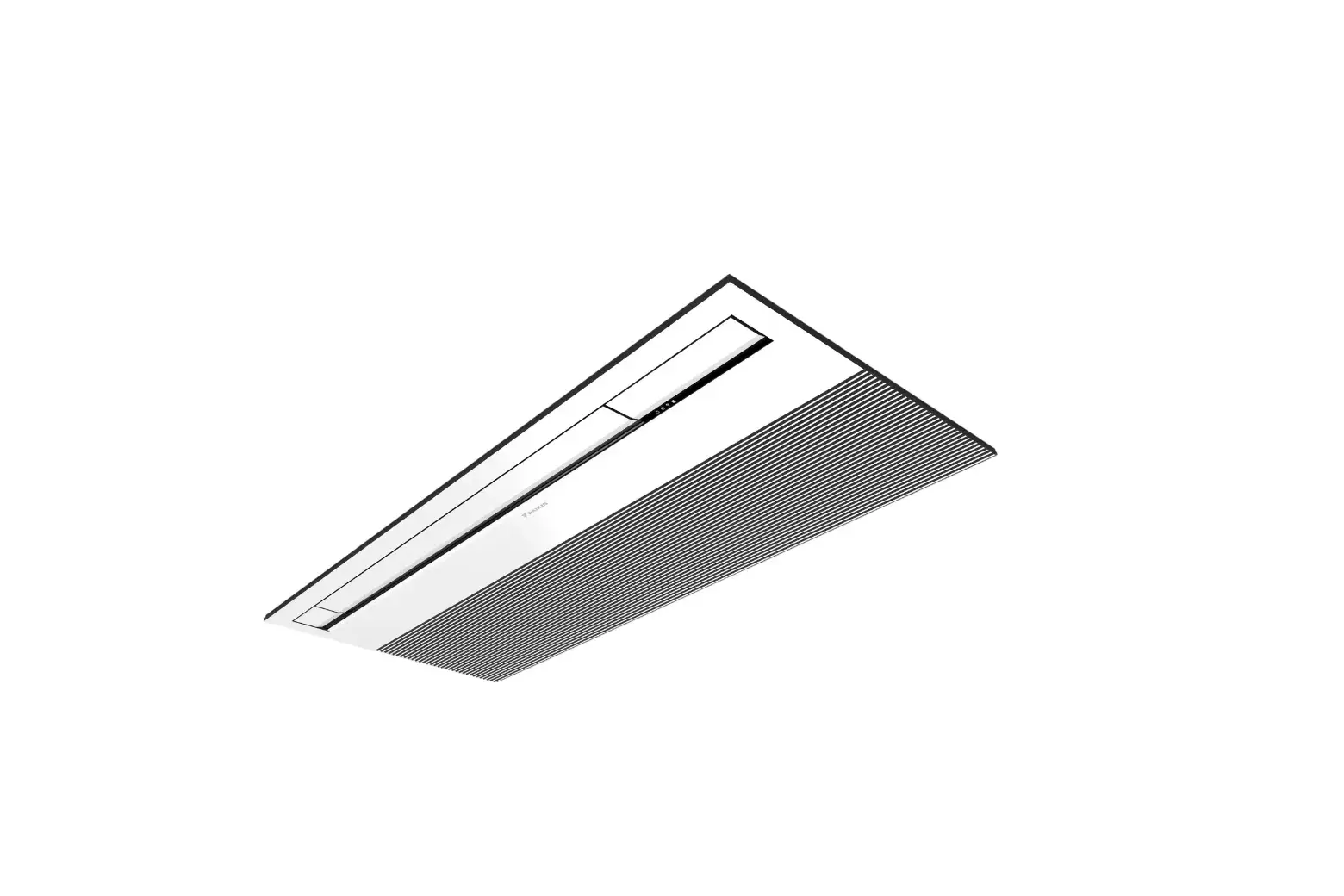

FKCAQ Series
Indoor Model No

FKCAQ71AV16
Outdoor Model No

RZVFQ71ARV16
Power supply intake

Outdoor unit
Cooling Capacity Rated Full/Half (min ~ max)
kW
7.0 / 3.5 (2.06 ~ 7.0)
Cooling Capacity Rated Full/Half (min ~ max)
Btu/h
23,885 / 11,942 (7,029 ~ 23,885)
Power consumption (Cooling) Rated Full/Half (min~max)
W
2,320
Annual Power Consumption
kWh
1,338
ISEER / ISEER Rank

4.05 / Inverter 3 Star
Power Supply
Ph, V, Hz
1 Ph , 230, 50
Modes

Cool, Dry, Auto, Fan Mode
Auto Restart

Yes
Indoor Unit
Front Panel Colour

White
Indoor Dimensions
(H x W x D)
145 x 1,210 x 523
Indoor Panel Dimensions
(H x W x D)
41 x 1,390 x 595
Indoor Machine Weight
(Kg)
20
Indoor Panel Weight
(Kg)
6.6
Model Name

BYKQ63AHW
BYKQ63AHS
BYKQ63AW
Indoor Panel Color

Surface Color : White & Base Color:Dark Grey
Surface Color : Surface Color; Silver & Base Color; Dark Grey
Surface Color : Surface Color; White & Base Color; White
Airflow rate
m³/min (Cmm)
18 / 16.6 / 15.3 / 13.9 / 12.5
Airflow rate
f³/min (Cfm)
635 / 587 / 540 / 491 / 443
Sound Level
dB(A)
48/46/44/42/40
Outdoor Unit
Casing Colour

Ivory White
Compressor Type

Rotary
Refrigerant

R-32
Refrigerant charge
R-32
1.30
Dimensions (HxWxD)
mm
595 x 845 x 300
Machine Weight
(Kg)
40
ODU Sound Level
dB(A)
50
Max. interunit piping length
(m)
30
Max. installation level difference
(m)
20
Piping Connection (Gas/Liquid)
mm (inch)
∅15.5/∅9.5 (5/8" ; 3/8")
Operating Ambient Temperature Range Cooling (Min ~ Max)
°CDB
21° ~ 52°
